Gas flow meter /vortex flow sensor made in China/ steam flow meter with stable accuracy Yantai manufacturer
Product Description
Gas Flow Meter /vortex flow sensor made in China/ steam flow meter with stable accuracy Yantai manufacturer
We upgrade our vortex flowmeter based on our rich production experience and market feedbcak . See the photo as below ,the left one is the new type, the right one is the old version !
Just send me inquiry for more information!
Product description:
LUGB swirl flow meter is a kind of flow instrument which measuring low-velocity gas with the features of high
accuracy, good reproducibility, wide measure-ratio, easy to install and use. Its a preferred product for measurement between trade measurement and
ransmission/distribution in oilfield and city natural gas.
Applications of Vortex Flow Meter
- Water Treatment
- Pump Testing
- Paper & Pulp
- Effluent Treatment Plants
- Waste Water & Sewerage
- Food & Diary Processing
- Chemical Process Plants
Features of Vortex Flow Meter
- Piezocrystal inbuilt in bluff body to avoid fluid turbulence caused by external type, no zero drift and high reliability
- No moving parts, high durability
- Convenient installation and maintenance
- Sensor not connect with the measured fluids directly, stable performance and long service life
- Output pulse signal is directly proportional to flow rate, high accuracy and no zero drift
- Wide measuring range, turndown ratio 10:1
- Low pressure loss, low cost
- Frequency output not affected by the fluid change in physical character and composition, meter factor (K) only considers shape and dimension of eddies. Measurement of volumetric flow can get compensation once it needs. Then no re-calibration meter factor needed if damaged parts be exchanged
- Wide application for air and gas
We can customized according to your requirements |
| Code | Description |
Factory Marks | LUGB | Standard |
Working Environment | /EX | Ex-Proof |
Normal Diameter | -XXX | -006:DN6, -008:DN8 |
Structure materials | -C,F,M | -C: carbon steel, F:304 stainless steel, M: 316L |
Measureed fluids | L,G,S | L:Liquids, G:gases, S:wuper-heated steam |
Temperature of fluid | 1,2,3 | 1: :-40°C to +160°C(average type),2:-40°C to+280(medium type),3:≤350°C(high type) |
Rated Pressure | 1 | ≤1.6Mpa |
2 | ≤2.5Mpa | |
3 | ≤4.0Mpa | |
Output signal | P | pulse |
I | Field power supply(battery) | |
E | 4-20mA(24VDC) | |
U | Field power supply 24V | |
F | 4-20mA current output | |
D | intelligent | |
Way of Install | J,H,C,R | J- Companion Flange valve type, H- Companion Flange connection, C-insertion type, R-thread |

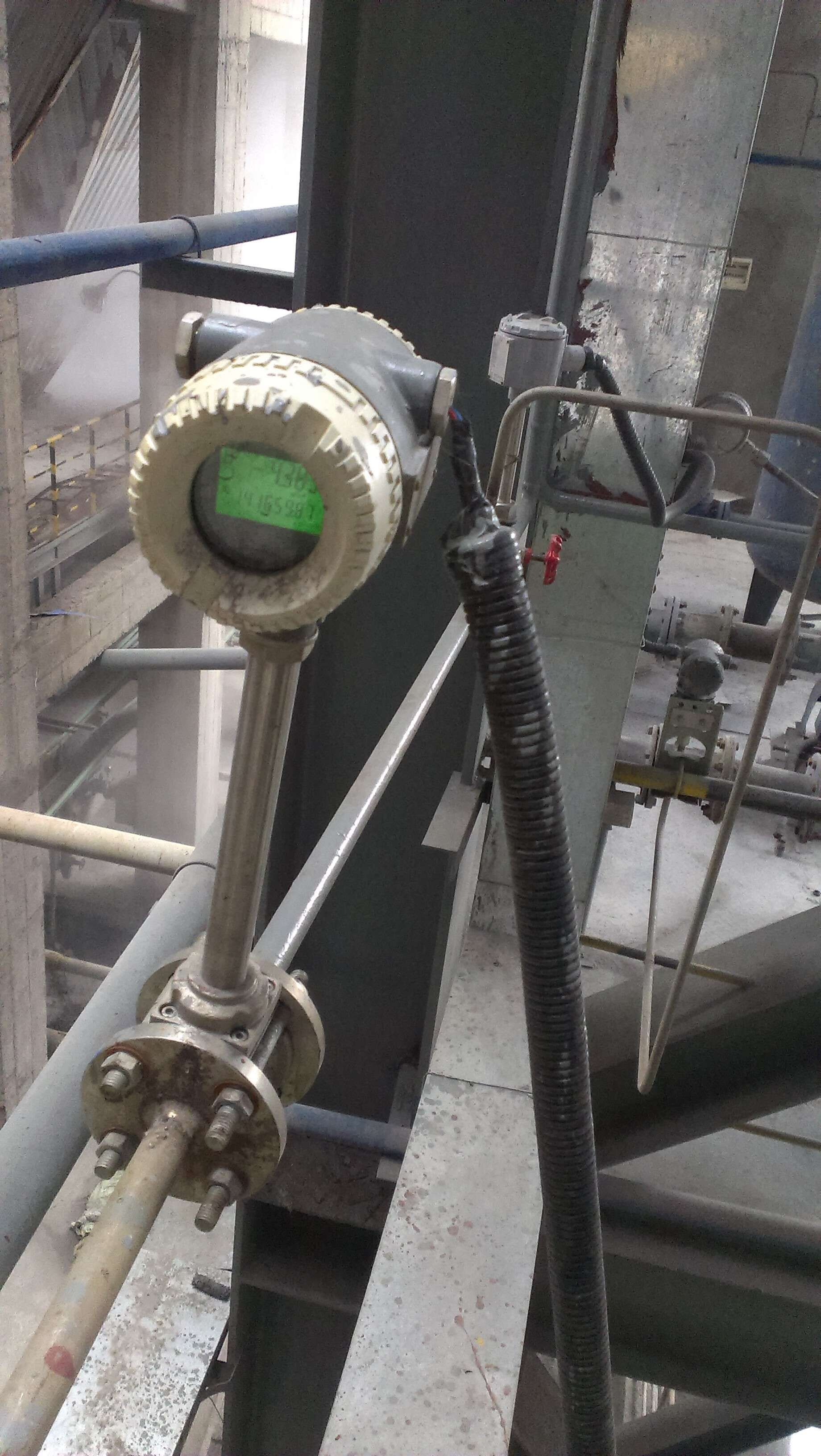

Installation Method:
Guarantee and after-sale service:
12 months guarantee for whole machine
24 hours technical support by e-mail.
1.You are trading company or direct producer ?
We are the direct producer for 25 years , not trading company .
2. What is the certification do you have ?
We have CE , ISO9001 ,SIL3 etc .
3. What is the delivery time ?
Our delivery time is within 3-5 after we get your payment ; for large qty mass order , the time should be confrimed again for you
4.How about your package ?
Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .
5.How about the payment terms ?
You can choose T/T, Western union , or you can choose by alibaba -credit insurance .
6. How long about the warranty time ?
Normally 12 months after customer receive the goods , since we are producer the time can be longer if you require .
