Product Description
Turbine Flowmeter measure lubricant oil 10w-40
Products show
Summary
LWGY series turbine flow meter is a new generation of turbine flow meter learned from advanced technology
at home and abroad and went by optimal design with features of simple structure,lightweight,high accuracy,
good repeatability,responsive,convenient installation and maintain etc.
Features
1.High accuracy,generally ±1%R,±0.5%R,higher accuracy ±0.5%R available
2.Good repeatability, short-term repeatability 0.05%~0.2%,available to get high accuracy for regular and
online calibration,priority selection in trade settlement.
3.Pulse frequency signal output,available for overall calculation and computer connection without zero
drift,strong anti-interference.
4.Compact and light structure,convenient maintain,high flow capacity.
5.Insertion type,used for large pipeline size measurement,low pressure loss,cheap price,available to take
out without flow cutoff.
Parameters
Name | Explanation |
Instrument name | Liquid turbine flow meter |
Medium | No impurities, low viscosity, no strong corrosive liquid |
Installation type | Flange connection type(DN20-DN200) |
Thread connection type (DN4-DN50) | |
Clamp connection type (DN4-DN100) | |
Insertion type (DN150-DN1100) | |
Temperature | -20-80℃ 80-150℃ |
Pressure | less than 6.3MPa |
Output signal | Pulse output |
4-20mA output | |
Display | With LCD display |
Without LCD display | |
Communication interface | RS485 protocol |
HART protocol | |
Power supply | 24VDC or battery |
Communication protocol | Modbus |
Accuracy | 0.2%, 0.5%,1.0% |
Material | 304 Stainless steel |
Flow Range
Diameter (mm) | Normal flow range(m³/h) | Extend flow range(m³/h) | Common proof pressure (MPa) |
DN4 | 0.04-0.25 | 0.04-0.4 | 6.3 |
DN6 | 0.1-0.6 | 0.06-0.6 | 6.3 |
DN10 | 0.2-1.2 | 0.15-1.5 | 6.3 |
DN15 | 0.6-6 | 0.4-8 | 6.3 2.5(flange) |
DN20 | 0.8-8 | 0.45-9 | 6.3 2.5(flange) |
DN25 | 1-10 | 0.5-10 | 6.3 2.5(flange) |
DN32 | 1.5-15 | 0.8-15 | 6.3 2.5(flange) |
DN40 | 2-20 | 1-20 | 6.3 2.5(flange) |
DN50 | 4-40 | 2-40 | 2.5 |
DN65 | 7-70 | 4-70 | 2.5 |
DN80 | 10-100 | 5-100 | 2.5 |
DN100 | 20-200 | 10-200 | 1.6 |
DN125 | 25-250 | 13-250 | 1.6 |
DN150 | 30-300 | 15-300 | 1.6 |
DN200 | 80-800 | 40-800 | 1.6 |

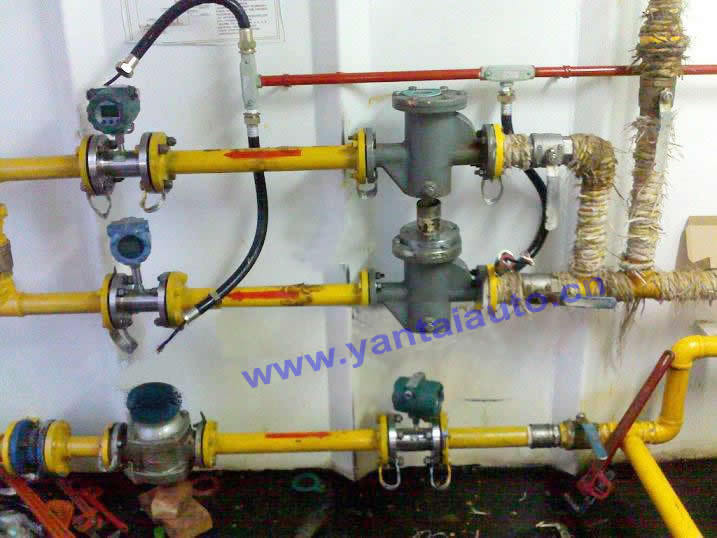

Installation conditions
Application
Turbine flow meters are widely used in petroleum,chemical,metallurgy,organic liquid,inorganic liquid,
liquefied gas,urban gas pipe network,pharmacy,food,paper-making industry etc .Turbine flow meter is
used to measure low viscosity,non-corrosive,clean liquid volume and cumulative flow rate in closed pipeline.
