Hot Sale China Cheap Ellipse wheel /dn100/150/200 PN16 oval gear flow meter
Product Description
Sale China Cheap Ellipse wheel dn100150200 PN16 oval gear Flow Meter
Product description:

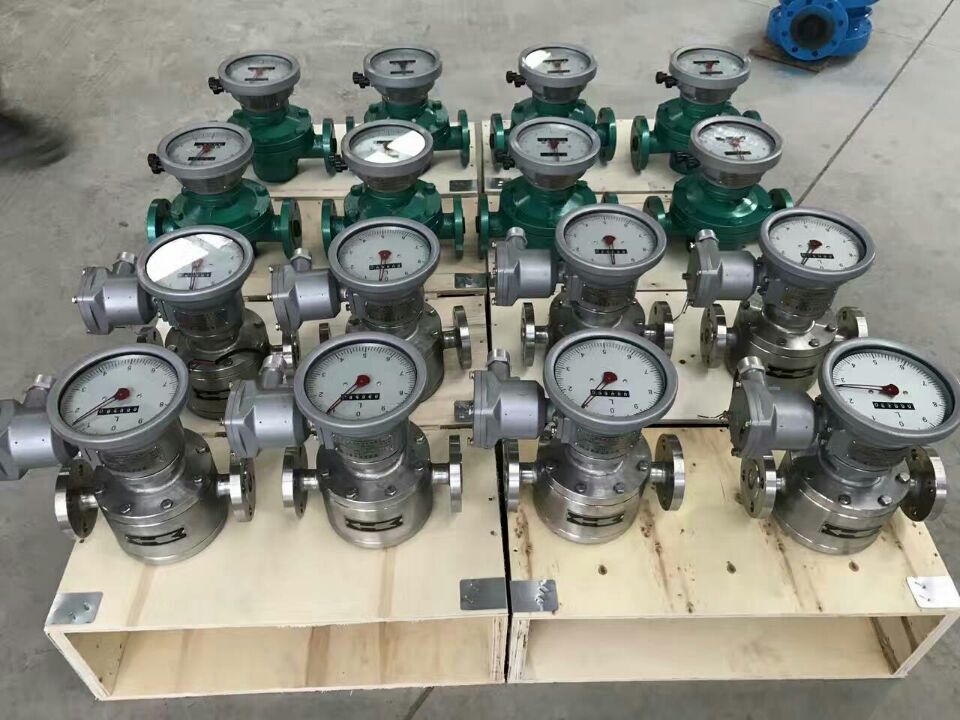

diesel fuel flow meter/oval gear flow meter
Diesel fuel flow meter/ oval gear flow meter is used to transfer high viscosity liquids with good repeatability and durability. It is widely used on petroleum, chemical, food industry ect.
Application:
Oval Gear Flowmeter is mainly used for high value liquids such as oil, chemical etc.
Main applications include unloading, transfer and consumption monitoring.
Petroleum,chemical processing,medicine,transportation,food ,ect.
Specification:
| Type | DN | Viscosity (MPa. s) | |||||||||
| <0.3 | 0.3~0.8 | 0.8~2 | 2~200 | 200~1000 | 1000~2000 | ||||||
| LC-10 | 10 | 0.2-0.5 | 0.08-0.5 | 0.08-0.5 | 0.05-0.5 | 0.06-0.3 | 0.03-0.3 | 0.03-0.2 | Flow Range unit:m 3 /h | ||
| LC-15 | 15 | 0.75-1. | 0.3-1.5 | 0.3-1.5 | 0.15-1.5 | 0.2-1.0 | 0.1-1.05 | 0.07-0.75 | |||
| LC-20 | 20 | 1.5-3 | 1-3 | 0.4-3 | 0.5-3 | 0.3-3 | 0.4-2.1 | 0.2-2.1 | 0.15-1.5 | ||
| LC-25 | 25 | 4-6 | 3-6 | 2-6 | 0.8-6 | 1-6 | 0.6-6 | 0.8-4.2 | 0.4-4.2 | 0.3-3 | |
| LC-40 | 40 | 9-15 | 7.5-15 | 5-15 | 2-15 | 2.5-15 | 1.5-15 | 2.1-10.5 | 1.0-10.5 | 0.7-7.5 | |
| LC-50 | 50 | 10-24 | 8-24 | 8-24 | 3-24 | 4.8-24 | 2.4-24 | 2.4-16.8 | 1.6-16.8 | 1.2-12 | |
| LC-B40\50 | 40\50 | 8-20 | 6-20 | 6-20 | 4-20 | 4-20 | 2-20 | 2.8-14 | 1.4-14 | 1.0-10 | |
| LC-B65 | 65 | 27-40 | 20-40 | 15-40 | 5-40 | 8-40 | 4-40 | 5.6-28 | 2.8-28 | 2-20 | |
| LC-80 | 80 | 40-60 | 30-60 | 20-60 | 8-60 | 12-60 | 6-60 | 8.4-42 | 4.2-42 | 3-30 | |
| LC-100 | 100 | 67-100 | 50-100 | 34-100 | 13.-100 | 20-100 | 10-100 | 14-70 | 6-70 | 5-50 | |
| LC-150 | 150 | 38-120 | 38-120 | 40-120 | 12-120 | 24--120 | 12-120 | 15-100 | 10-90 | 16-80 | |
| LC-200 | 200 | 227-340 | 170-340 | 114-340 | 43-340 | 56-340 | 34-340 | 47.6-238 | 23.8-238 | 17-170 | |
| LC-250 | 80~500 | 150~450 | |||||||||
| Accuracy class | 0.5 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.5 | ||
| Note | "gal/h" could be special ordered. | ||||||||||
| Shell and cover | cover plate | oval wheel | Rotary shaft | Sheath of shaft | Nominal pressure(MPa) | |
| LC-A | Cast steel | Cast iron | Stainless steel | Bronze(with oil) or rolling bearing | 1.6 | |
| LC-E | Cast steel | Cast iron\Stainless steel | Under DN50 6.3 DN80-100 4.0 DN150-200 2.5 | |||
| LC-Q | Cast iron | Cast iron | Alloy aluminum, engineering material | graphite | 1.6 | |
| LC-B\C | Stainless steel | Stainless steel | Stainless steel | graphite | 1.6\2.5 | |
| LC-L | Cast aluminum | Cast iron, Stainless steel | Alloy aluminum, engineering material | Bronze(with oil)\graphite\rolling bearing | 1.6 | |
| Notes:1. OCr18Ni12Mo2Ti for type LC-C;OCr18Ni9Ti for type LC-B. 2. Flange is convex under 2.5MPa ,and roughness at 6.3 MPa;and both of the above at 4.0 MPa. | ||||||
