MD-3051 Digital Online Sanitary Type Density Meter For Milk Industry ATEX
Product Description
MD-3051 Digital Online Sanitary Type Density Meter For Milk Industry ATEX
Description:
MD3051 online density meter is used to measure liquid concentration and density continuously,a new type
online instrument,can be used in industrial process directly.
As a two wire transmitter MD3051 online density meter is maily used for industrial operation control,relative
4-20mA signal will be generated depending on concentration and density value.available for remote
calibration and monitor via digital communication.
Structure:

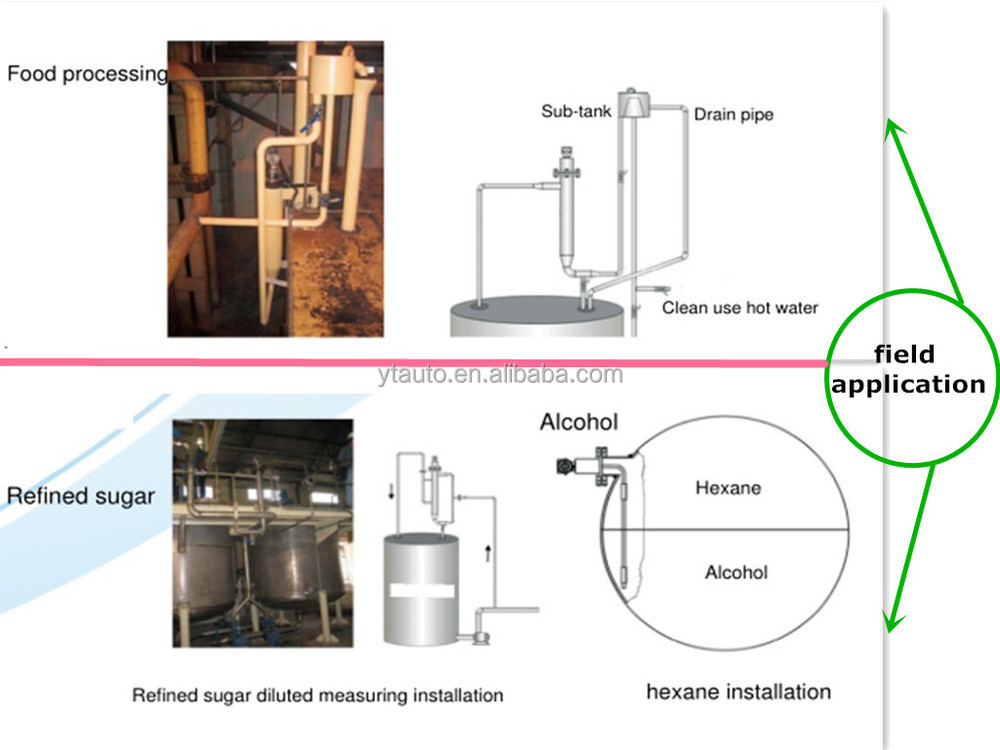

Application:
- petroleum,natural gas,mining salt,oil refining,oil and water interface detection in petrochemical industry
- rape juice,tomato juice,fruit syrup,vegetable oil,wine alcohol and soft drink
- black pulp,green pulp,white pulp and alkali solution in the paper industry
- urea,detergents,ethylene glycol,lubricating oil,acid solution and polymer
Features:
1.integrated structure transmitter with two-wire, no moving parts and maintain easily
2. four and a half digital LCD display
3. easy installation and usage,digital display as long as it is inserted into the liquid
4. for use in fluid or stationary liquid, and suitable for internal installation of pipes and tanks
5. two parameters(temperature and density)can be alternately displayed,easy conversion of industry
standard density
6. continuous online measurement of liquid density during non-interrupted process, can be directly used in
the process control of production
7.stainless steel wetted components, safe and reliable
8. safe type for use in hazardous environments, hygienic type for use in food production site
sample device installed in our office:
Technical parameter
1. Current Output: 4 ~ 20mA
2. Digital Signal: HART protocol
3. Power Supply: 16 ~ 30V DC (24V DC is recommended)
4. Density Range:0 to 2 g/cm3 ,0 to 3 g/cm3
5.Accuracy:0.01g/cm3
6. Resolution: 0.001 g / cm3
7. Temperature Range: 0 ~ 100 °C
8. Temperature Accuracy: 0.2 °C
9. Ambient Temperature: -10 ~ 60 °C
10. Humidity Range: 0 ~ 90%
Remark:
When order,please specify the length of body,sensor spacing,medium,range and the site conditions
Order Sheet
| Model | Spec Code | Direction |
| MD3051 |
| Online liquid level densitometer |
| Installation and shape | A……… | Vertically Mounted type(Header connected with cylinder) |
| B……… | Vertically Mounted type(square flanges connected) | |
| C……… | Pipes Mounted at side type | |
|
Sensor spacing | 5…… | 700mm |
| 10……… | 1000mm | |
| 15……… | Special requirement | |
|
Measuring range | 1……… | 0-1g/cm3 |
| 2……… | 0-2g/cm3 | |
| 3……… | 0-3g/cm3 | |
|
Mounted flanges | H6…… | DN65 |
| H8…… | DN80 | |
| H10…… | DN100 | |
| Typical model | MD3051A51H8 | |
| Display Header(optional) | default | LCD smart display header(0-100%linear display) |
| Output signal | default | 4-20ma |
| Diaphragm material | default | 316 stainless steel(others can be customized) |
| Transport | Wooden box | |
Installation method
1.installation in pipeline:
2.installation in tank:
Workshop and quality test:
Package:
Shipping:
Location:Yantai,China
About us
We are Yantai Auto Instrument Making CO.,LTD.,founded in 1994,locate in Yantai,Shandong
Province,China.We Yantai Auto are special field instrument manufacuturer,mainly produce flow
meter,Level Meter,online density meter,Pressure Transmitter etc.We also have aother comany
Yantai Keda Heavy Industry Co.,Ltd which is specialized in various kinds of castings.
Our product are widely used in the industries of electrical power,petroleum,metallurgy,medicine,
food,brewing,textile and build material etc.Our performance are quickly increased under 10 years
stable development.
We are the first instrument company in Shandong province who get the certification of ISO:2000
quality system acknowledge and esteblished quality control system under international standard.
Our customer:
2015 Germany Hannover Messe:
How about our service?
trademanager online service:8:00AM~10:00PM, Monday ~ Sunday
skype ID:cindy1987910
telephone:+86 15053538672
warranty:12months
